Name: Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Brand: Dongguan Zhijia Storage Equipment Co.,Ltd.
SKU: W-DR2017523
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Drive In Pallet Racking

Material: High Quality Cold Rolled Steel

Weight Capacity: 500-4000kg/pallet

Technique: Cold Rolled

Structure: Assemble

Scale: Heavy Duty

Store Layer: 1 To 7 Layers Per Bay

Installation: Easy Assemble And Disassemble

Highlight:

Heavy Duty Drive In Pallet Racking

Safe Drive In Pallet Racking

Heavy Duty Warehouse Rack Shelving

Basic Infomation

Certification: AS4084

Model Number: W-DR2017523

Payment & Shipping Terms

Packaging Details: Standard export carton with bubble film

Delivery Time: 15-30 Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3500 Ton/Tons per Month

Gallery

Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving

Product Description

500-2000kg Per Layer Galvanization Customzied Size Pallet Flow

Description:

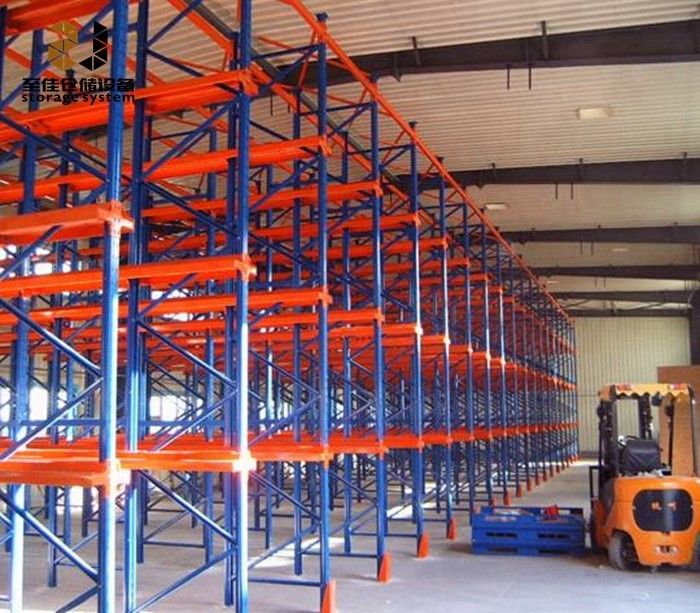

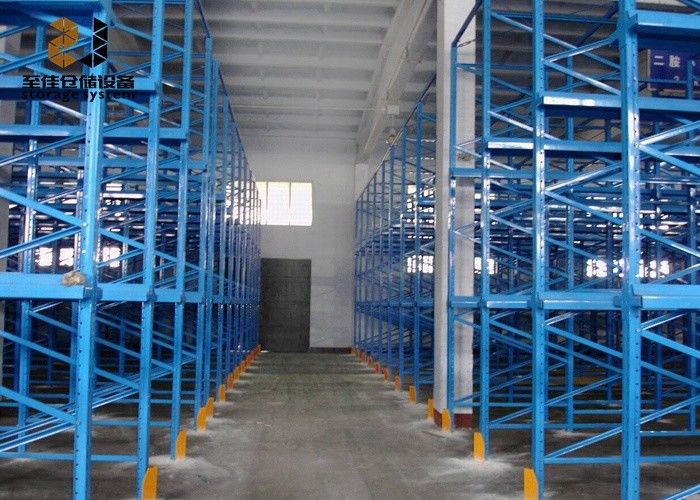

1) Drive-in and drive-through racking is ideally suitable for storing large quantities of goods with a low number of different articles. The racking system combines the advantages of block stacking and rack stacking: compact space utilization at height and careful storage of goods.
2) Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another; Forklifts operation alongside the aisle;
3) First-in-last-out access process, one side in/out or two side in/out can be met.
4) Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
5) First level pallets can be placed on the floor;
6) Easily adjustable and random space allocation.
7) Surface: Powder coated or galvanized and color optional
8) Flexibility and ease of installation
9) Can be designed according to clients' requirements.
10) The reliable and efficient service before and after deal.

Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:

Product name	500-2000kg Per Layer Galvanization Customzied Size Pallet Flow
Features	Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200451.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black
Zhijia Service	Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins

Specifications of Upright
Item	Width(mm)	Depth(mm)	Thickness(mm)	Loading Capacity(kg)
1	85	67	1.6	7000
2	85	67	1.8	8500
3	85	67	2	10000
4	85	67	2.3	12500
5	100	67	1.8	10500
6	100	67	2	12000
7	100	67	2.3	13800
8	100	95	2	12000
9	100	95	2.3	14500
10	100	95	2.5	16000
11	100	95	2.75	18000
12	100	95	3	20000
13	120	95	2.5	17000
14	120	95	2.75	19000
15	120	95	3	21000

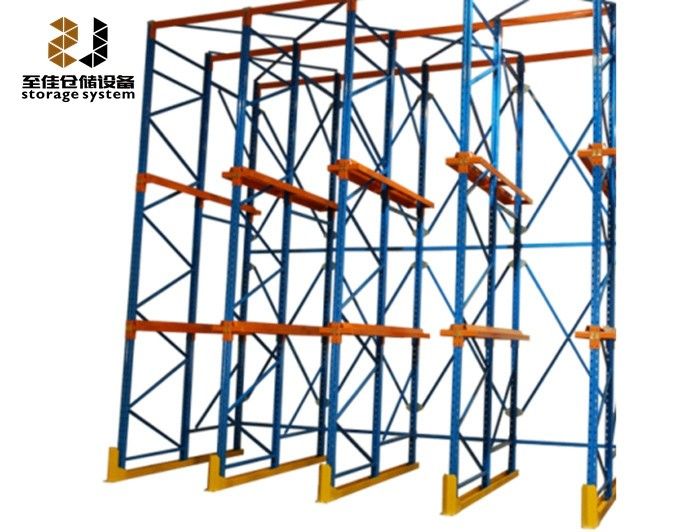

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

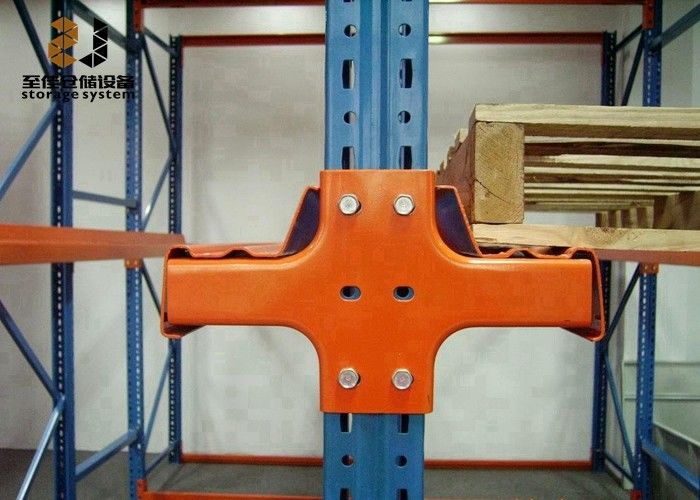

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
