Assemble / Welded Drive In Drive Through Racking System ISO90001 Approved

Assemble Or Welded Galvanization Customzied Size Structural Racking

Description:

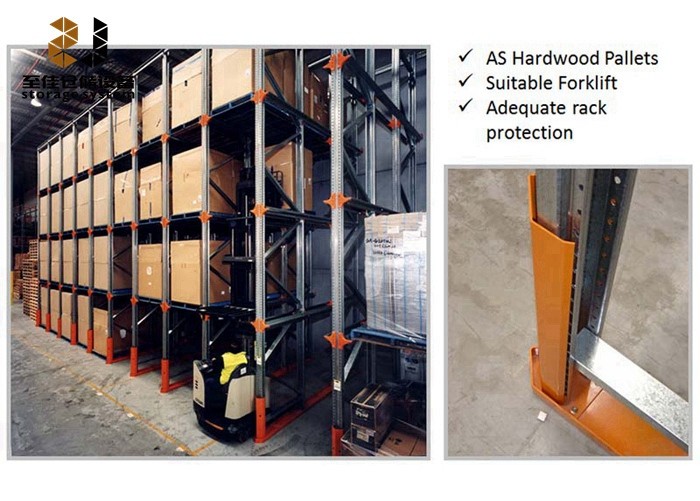

1) Drive-in and drive-through racking is ideally suitable for storing large quantities of goods with a low number of different articles. The racking system combines the advantages of block stacking and rack stacking: compact space utilization at height and careful storage of goods.
2) Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another; Forklifts operation alongside the aisle;
3) First-in-last-out access process, one side in/out or two side in/out can be met.
4) Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
5) First level pallets can be placed on the floor;
6) Easily adjustable and random space allocation.
7) Surface: Powder coated or galvanized and color optional
8) Flexibility and ease of installation
9) Can be designed according to clients' requirements.
10) The reliable and efficient service before and after deal.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

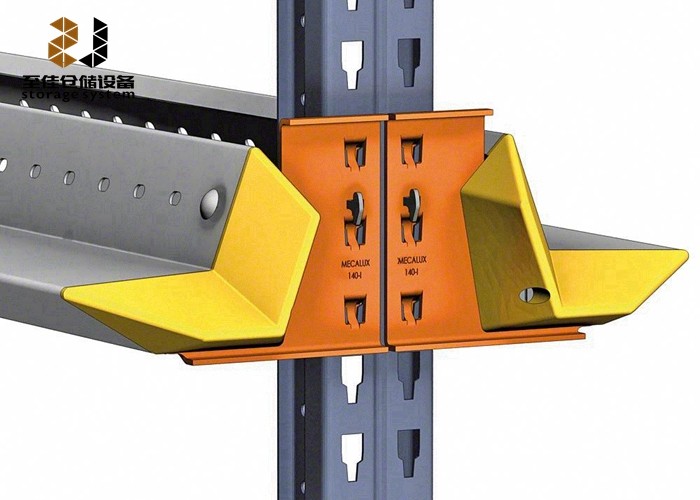

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
