Adjustable Light Duty Storage Rack for Clothes Warehouse Storage
Description:

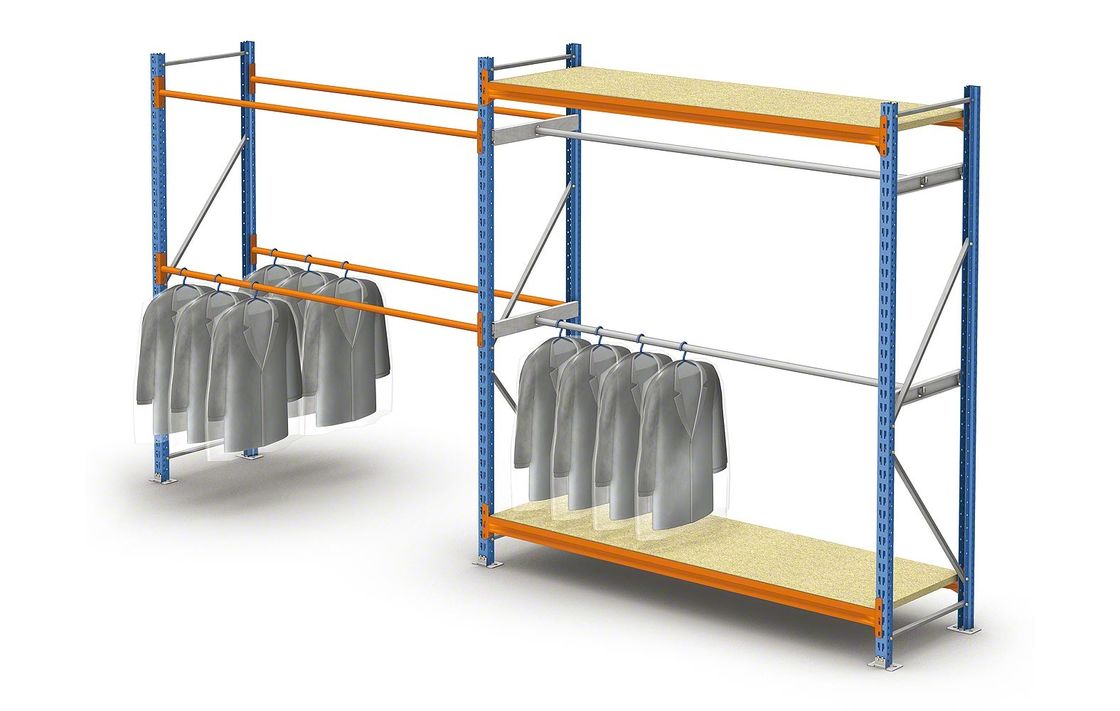

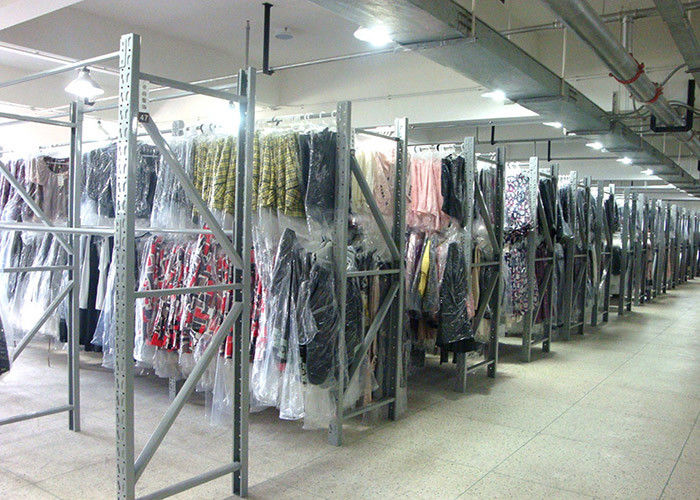

The light duty storage rack is easy to be assembled or disassembled, nice surface treatment, usually being used in clothes warehouse storage. It will help the clothes shop to select cloth and classify . Loading capacity 100-200 kg per layer, multi-combination, powder coated.
Features:
1. All-purpose slot angle steel upright.
2. Cut-in composite usually with steel panel.
3. Simple and quick assembled and dismantled
4. Height of each level can be adjusted freely by pitch of 50mm
5. Loading and unloading by hand
6. Loading capacity 100-200kg per level
7. Powder coating finish and various color be available
manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product
Surface treatment:
The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing
1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns
2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.
3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.
4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.
Standard Export Seaworthy Packing
Knockdown packing with plastic air bubble foam package, save transportation cost, safe for long distance transportation.
Required information from customers for quick quote:
1. the AUTOCAD drawing or draft drawing of warehouse or racking.
2. the size of the warehous, length, height, and width.
3. how many layers of the racking?
4. your pallet size.
5. max weight of pallet with cargo on.
6. special color requirement.
